BGA Test Sockets


56 Ball 64 Ball 66 Ball 88 Ball 91 Ball 144 Ball 196 Ball 324 Ball 336 Ball 432 Ball 480 Ball

Part Number Click Enlarge 56 Pin Sockets Ball Matrix Price Shopping Cart
777D2056H105C   Sensata 56 pin BGA test socket. 56 Pin Open top BGA package test socket.
  • Open top BGA test socket
  • 56 Pins
  • 9.0 x 7.7mm Package Package body
  • 0.75mm Pitch
  • Through-hole mount
  • Mfr. Sensata Technologies (Formerly Wells-CTI)
  • Status - IN STOCK
  • Drawing request
7x8 BGA matrix $85.00

Part Number Click Enlarge 64 Pin Sockets    Ball Matrix Price Shopping Cart
CBG064-069UM   Sensata 64 pin, Open top BGA package test socket. 64 pin Open top BGA package test socket. 7x8 BGA matrix $98.00

Part Number Click Enlarge 66 Pin Sockets    Ball Matrix Price Shopping Cart

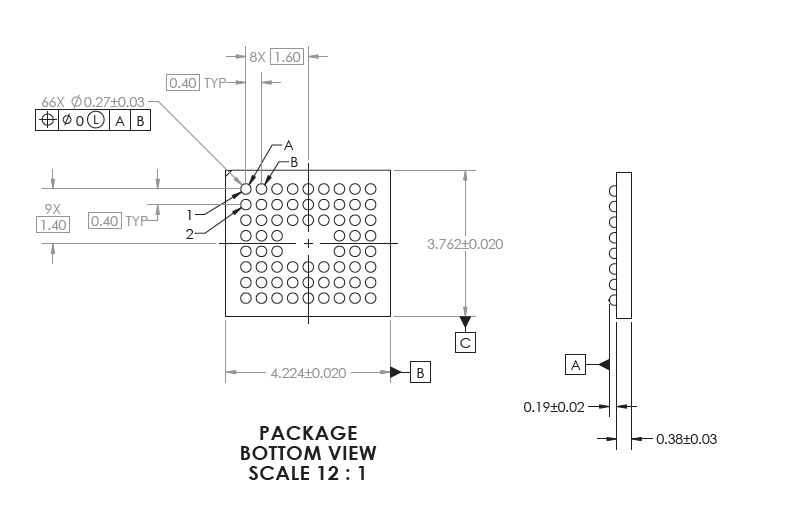

715-SH06604AT-404-A1-01   Sensata 66 pin BGA test socket. 66 Pin Open top BGA package test socket with mounting hardware.
  • Open top BGA test socket
  • 66 Pins - 8x9 pin matrix
  • 3.76 x 4.22mm Package package
  • 8.13mm Socket package pocket
  • 0.4mm Pitch
  • Mfr. Sensata Technologies (Formerly Wells-CTI)
  • Status - IN STOCK
  • Drawing request
8x9 BGA matrix $125.00

Part Number Click Enlarge 88 Pin Sockets    Ball Matrix Price Shopping Cart

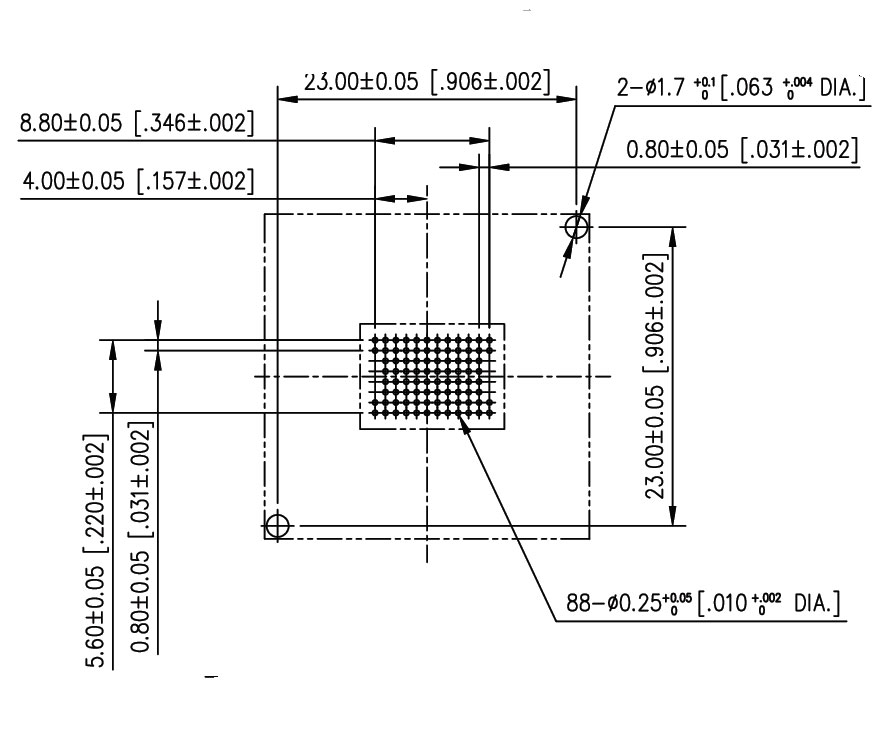

703-1088-01   Sensata 88 pin BGA test socket. 88 Pin Open top BGA package test socket with mounting hardware. 12x8 BGA matrix $125.00

Part Number Click Enlarge 91 Pin Sockets Ball Matrix Price Shopping Cart
1024-2-0091-0B-00   Sensata 334 pin BGA test socket. 91 Pin Open top BGA package test socket.
  • Open top BGA test socket
  • 91 Pins
  • 24.0 x 12.0mm Package Package body
  • 1.0mm Pitch
  • Through-hole mount
  • Mfr. Sensata Technologies (Formerly Wells-CTI)
  • Status - IN STOCK
  • Drawing request
24.0 x 12.0mm Package Package body BGA Socket $95.00

Part Number Click Enlarge 144 Pin Sockets Ball Matrix Price Shopping Cart

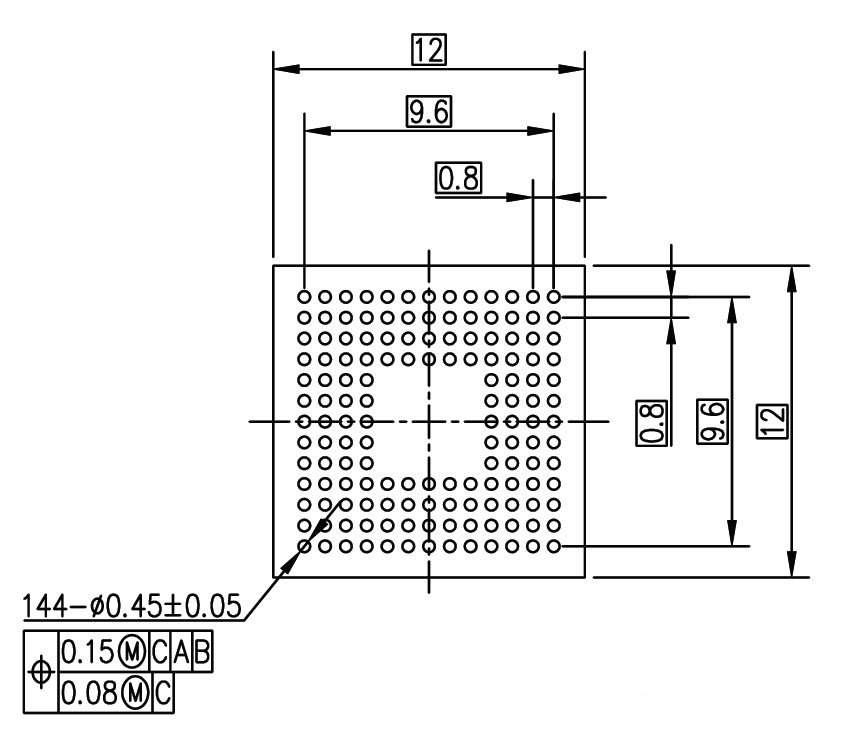

777F144H201C   Sensata 144 pin BGA test socket. 144 Pin Open top BGA package test socket with mounting hardware.
  • Open top BGA test socket
  • 144 Pins - 13x13 pin matrix
  • 12.0 x 12.0mm Package Package body
  • 9.6 x 9.6mm Square pin matrix
  • 0.8mm Pitch
  • Through-hole mount
  • Mfr. Sensata Technologies (Formerly Wells-CTI)
  • Status - IN STOCK
  • Drawing request
13x13 BGA matrix $125.00

Part Number Click Enlarge 196 Pin Sockets Ball Matrix Price Shopping Cart
718H196-404-A0-01   Sensata 196 pin BGA Closed top test socket. 196 Pin Clamshell closed top BGA package test socket with mounting hardware.
  • Closed top Clamshell BGA test socket

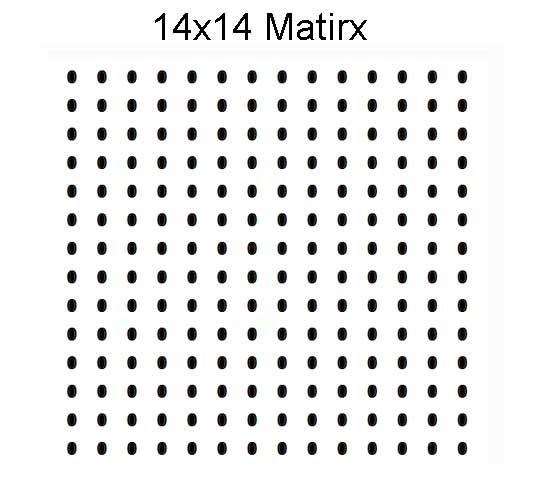

  • 196 Pins - 14x14 pin matrix
  • 5.6x5.6mm Package Package body width
  • 0.4mm Pitch
  • Surface mount
  • Mfr. Sensata Technologies (Formerly Wells-CTI)
  • Status - IN STOCK
  • Drawing request
8x9 BGA matrix $125.00

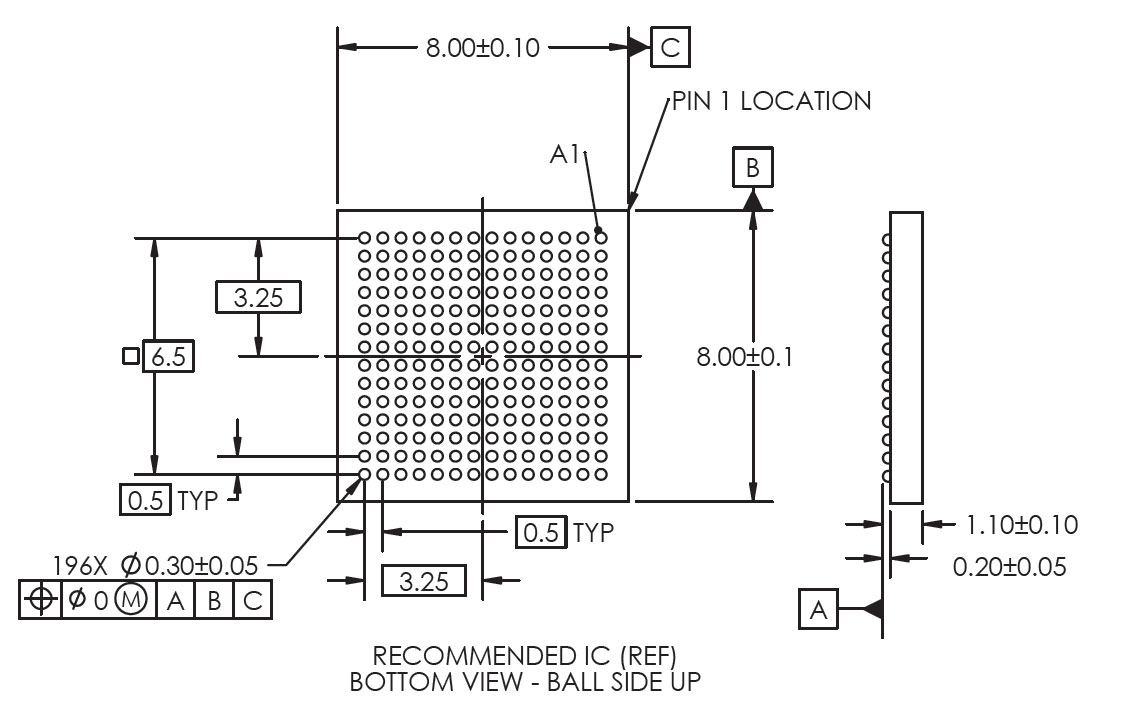

718-19608-504-C0   Sensata 196 pin BGA test socket. 196 Pin Closed top BGA package test socket with mounting hardware.
  • Closed top BGA test socket
  • 196 Pins - 14x14 pin matrix
  • 8.0mm Package Package body width
  • 8.13mm Socket package pocket
  • 0.5mm Pitch
  • Surface mount
  • Mfr. Sensata Technologies (Formerly Wells-CTI)
  • Status - IN STOCK
  • Drawing request
8x9 BGA matrix $195.00

Part Number Click Enlarge 334 Pin Sockets Ball Matrix Price Shopping Cart

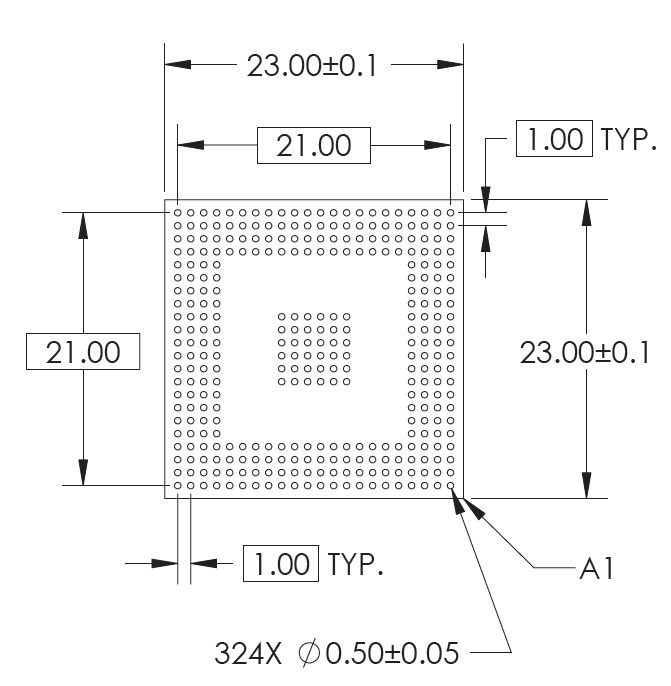

1023-2-0324-0B-00   Sensata 334 pin BGA test socket. 334 Pin Open top BGA package test socket.
  • Open top BGA test socket
  • 324 Pins - 22x22 pin matrix
  • 23.0 x 23.0mm Package Package body
  • 21.0 x 21.0mm Square pin matrix
  • 1.0mm Pitch
  • Through-hole mount
  • Mfr. Sensata Technologies (Formerly Wells-CTI)
  • Status - IN STOCK
  • Drawing request
22x22 BGA matrix $185.00

Part Number Click Enlarge 336 Pin Sockets Ball Matrix Price Shopping Cart
1023-1-0336-0B-00L25   Sensata 336 pin BGA test socket. 336 Pin Open top BGA package test socket.
  • Open top BGA test socket
  • 366 Pins - 12x28 pin matrix
  • 10.0mm Package Package body width
  • 23.0mm Package Package body length
  • 0.80mm Pitch
  • Through-hole mount
  • Mfr. Sensata Technologies (Formerly Wells-CTI)
  • Status - IN STOCK
  • Drawing request
8x9 BGA matrix $185.00

Part Number Click Enlarge 432 Pin $ Add
BGA432-33   Aries 432 pin BGA test socket. Lidless 432 Pin BGA package test socket .
  • Lidless BGA test socket
  • 432 Pins - 24x24 Six Columns per side matrix
  • 30.9mm (1.22 inch) Package Package body width
  • 0.5mm Pitch
  • Through-hole mount
  • Aries
  • Status - Just 1 left IN STOCK
$225.00

Part Number Click Enlarge 480 Pin $ Add
BGA-480-12   Aries 480 pin BGA test socket. 480 Pin Open top BGA package test socket with mounting hardware.
  • Closed top BGA test socket
  • 480 Pins - 26x26 Six Columns per side matrix
  • 33.4mm (1.32 inch) Package Package body width
  • 0.5mm Pitch
  • Through-hole mount
  • Aries
  • Status - 2 IN STOCK
$195.00
